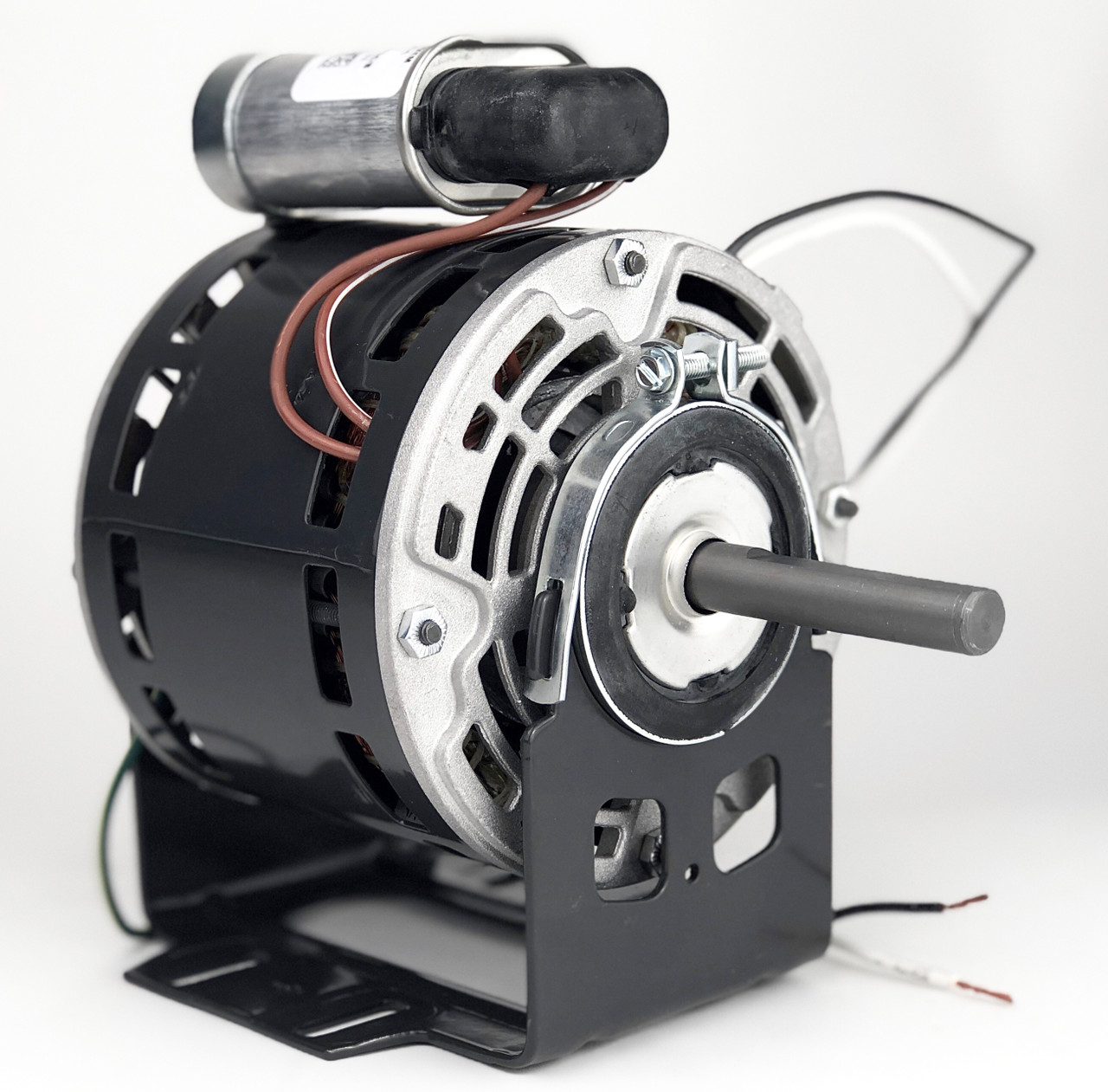

Penn Ventilator

Features

  • Direct OEM Replacement
  • Direct Drive, Fan Coil, Condenser, Exhaust Fan, Evaporator
  • Available in Sleeve or Ball Bearing
  • Belly Band, Resilient Ring Mounting, Torsion Flex or Lug
  • Shaded Pole or PSC
  • CSA Approved

Specifications

HP 1/4
RPM 1550 / 1300 / 1050
Volts 115
Phase 1
Frame 42
Bearings Ball
Rotation CWLE
Speeds 1
Amps 3.5
Shaft 1/2" x 3"
Enclosure Open
Mount Resilient
Capacitor (Supplied) 10MFD 370VAC
Application Exhaust Fan
Notes 14" Leads with AMP Connector
Replaces 63821, 63821-0, 7185-0219, 71850219, DOMEX DX06B, DX08B

Related Products

x63751-hvac

X63751

HP: 1/2
RPM: 1650/850
Voltage: 120
Frame: 48
Rotation: CWSE
Amps: 9.7 / 3.9
Mount: Lug
Notes: 4 Lug Mount plus Plug
Replaces: 63751, 63751-0, 7163-9771 7124-2392, HF2G043, HF2G043N

d0343-hvac

D0343

HP: 1/40
RPM: 1550 / 1050
Voltage: 115
Frame: 3.3
Rotation: CWSE
Amps: 1.3 / 0.6
Mount: Lug Mount
Notes: 10" Leads with Plug Assembly
Replaces: Penn Vent Direct OEM Replacement 56343-O

d0746-hvac

D0746

HP: 1/12
RPM: 1550 / 1300
Voltage: 115
Frame: 3.3"
Rotation: CCW
Amps: 1.1 / 0.73
Mount: Lug Mount
Notes: 12" Leads with Plug Assembly
Replaces: OPV746, 63746-0, 63746, JE2H057 JE2H057-T, FX10SR, 71903057, 7190 3057, Fasco 7190-3481, 7190 3481

x63747-hvac

X63747

HP: 1/7
RPM: 1550 / 1300 / 1050
Voltage: 115
Frame: 42
Rotation: CWSE
Amps: 2.1 / 2.0 / 1.7
Mount: Lug Mount
Notes: 14" Leads with AMP Connector
Replaces: DE2F7085-T 63747-0 DE2F110N 63747 DX11VSR CENTURY OPV747 7185-0264 71850264

x63748-hvac

X63748

HP: 1/6
RPM: 1550 / 1300 / 1050
Voltage: 115
Frame: 42
Rotation: CWSE
Amps: 2.2 / 2.0 / 1.8
Mount: Lug Mount
Notes: 14" Leads with AMP Connector
Replaces: DE2F7088-T 63748-0 63748 SX095VSRC DE2F108N CENTURY OPV748
