Features:

  •  48 Frame
  • Single Phase
  • Energy Efficient
  • Permanent Split Phase
  • Thru Bolt or Belly Band Mounting
  • Reversible Rotation
  • Water Slinger on Shaft
  • Shaft Up or Down Application
  • Total Enclosure
  • Hi Temp

Specifications

HP 1/3 - 1/8
RPM 825
Volts 460
Bearing Ball
Amps 1.0
Speeds 1
Shaft 1/2" x 6"
Frame 48
A Dimension 5.24"
Capacitor Rating 7.5MFD 370VAC
Notes 48" Lead Length
Replaces MARS 20884

Related Products

em3469

EM3469

HP: 1/3 - 1/5
RPM: 825
Voltage: 208-230
Amps: 1.9 - 1.2
Frame: 48
Notes: 36
Replaces: MARS 20469 US Motors 5464 Rotom R23469

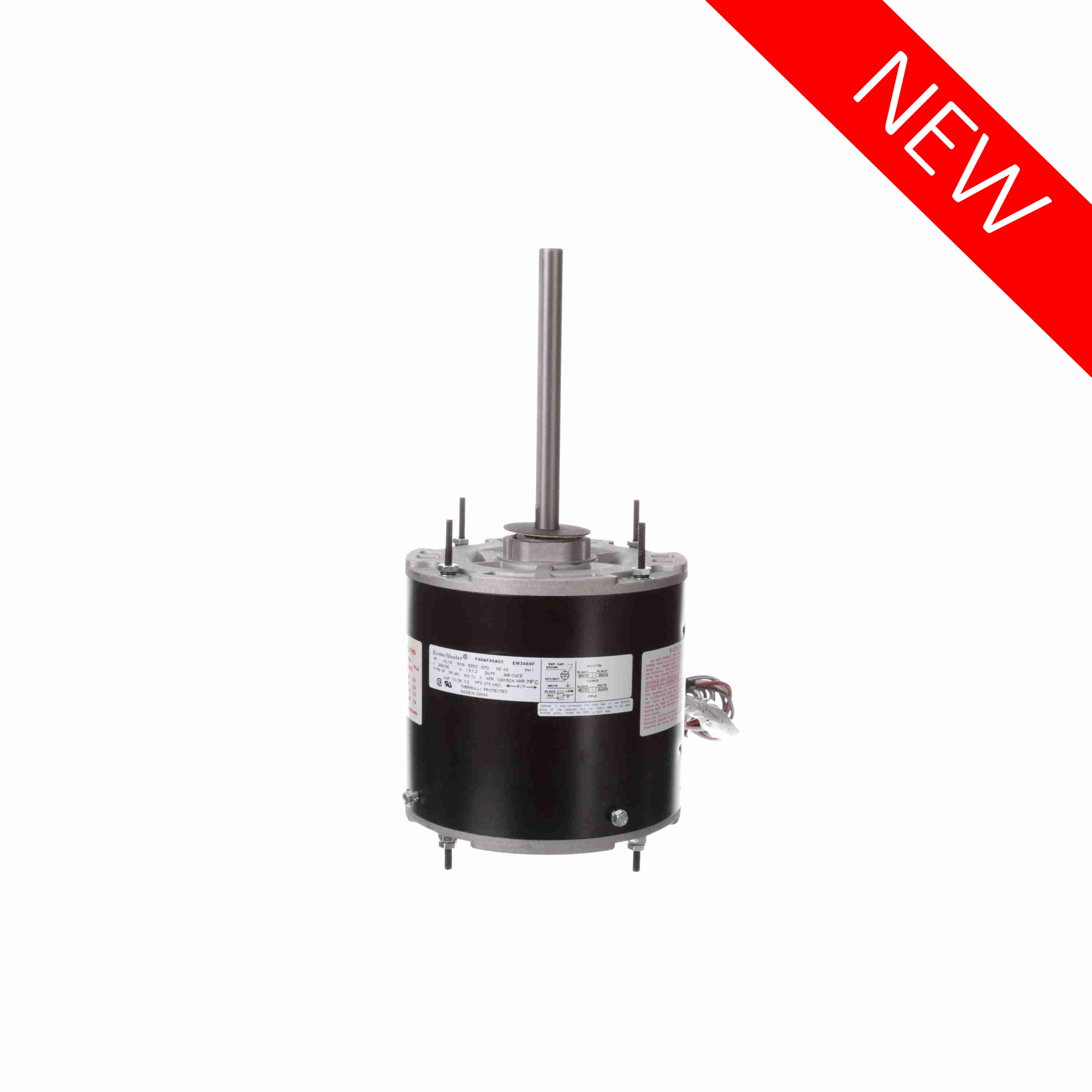

em3465

EM3465

HP: 1/3 - 1/5
RPM: 1075
Voltage: 208-230
Amps: 2.8 - 1.7
Frame: 48
Notes: 36
Replaces: MARS 20465 US Motors 3323 Rotom R22605

em3468

EM3468

HP: 1/2 - 1/4
RPM: 1075
Voltage: 208-230
Amps: 3.9 - 1.6
Frame: 48
Notes: 36
Replaces: MARS 20468 US Motors 3324 Rotom R22602

em3459

EM3459

HP: 1/3 - 1/8
RPM: 825
Voltage: 208-230
Amps: 2.1
Frame: 48
Notes: 48
Replaces: MARS 20459 Century ORM5488 US Motors 1875 Rotom R22601

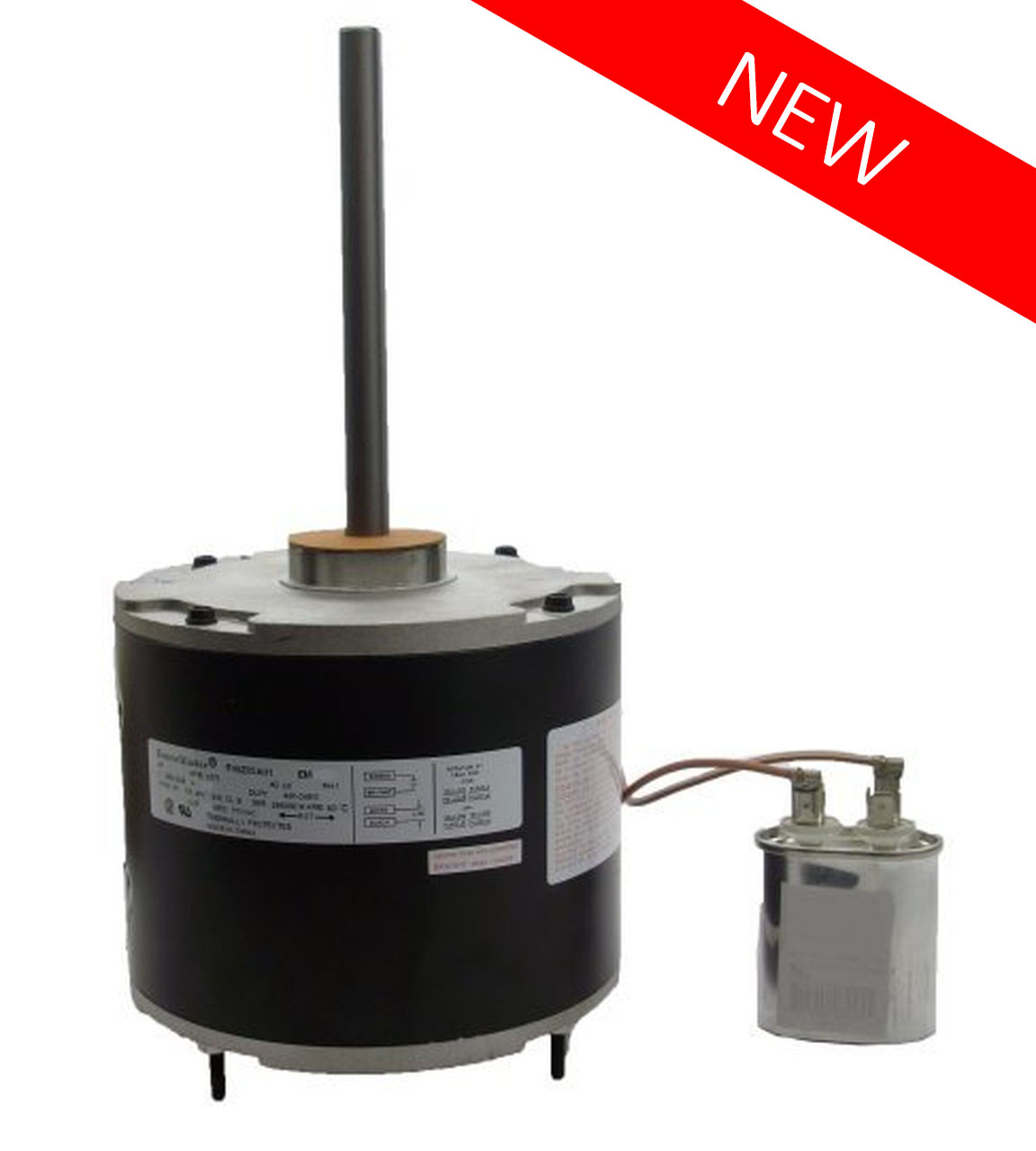

em3458

EM3458

HP: 1/3 - 1/6
RPM: 1075
Voltage: 208-230
Amps: 2.0
Frame: 48
Notes: 48
Replaces: MARS 20458 Century ORM5458 US Motors 3323 Rotom R22600
